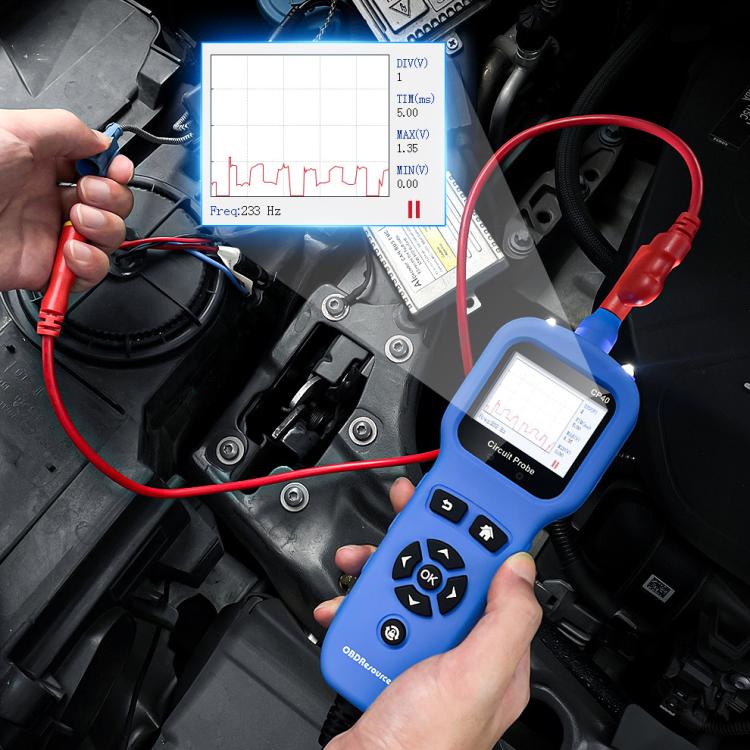

OBDResource Professional Automobile Circuit Analysis Injector Tester

£206.39

Sale Sold out

In Stock - Ships in 1-3 Days

Estimated delivery: 14 Nov - 19 Nov (exact time at checkout)

Free Shipping

30-Day Returns

1-Year Warranty

Shipping Information

FREE SHIPPING to UK & 40+ countries. Fully insured.

Delivery: Estimated times shown at checkout based on your location (typically 6-13 days total including 1-3 days handling)

No hidden fees on orders under £135 (orders over £135 may have import duties)

Ships from China via tracked DDP service. Order by 12 AM London time for next-day dispatch.

Full shipping policy →

30-Day Money-Back Guarantee

Return unused items within 30 days (you pay return shipping). Faulty items covered at no cost to you.

Full policy →

Right Part Guarantee

Get exactly what you ordered or your money back, including shipping. 30 days, no questions asked.

Hassle-Free Returns

Start your return online in seconds. No forms, no hassle.

Return portal →.

Trusted by 80,000+ DIY & repair professionals

1. Power supply voltage: 8VDC (MIN)
2. Power supply voltage: 32VDC (MAX)
3. Voltage test range: 0-80VDC
4. Voltage accuracy: 0.1V
5. Probe tip impedance to ground: 4.7M
6. Resistance test range: 0.1 milliohms (please pay attention to the error value when it is greater than 200K)
7. Frequency test range: 5Hz - 20K Hz
8. Oscilloscope sampling rate: 1M Hz (MAX)
9. Oscilloscope monitoring frequency: 20K Hz (MAX)
10. Circuit breaker: 8A thermal - self-recovery
11. Short circuit automatic protection response time: 0.01ms
12. Screen size: 2.4 inches
13. Extension line size: 10 meters
14. Widely used in: automotive circuit maintenance, automotive component activation, component testing, pulse signal transmission, fuel injector repair, automotive battery testing, resistance voltage measurement, diode measurement, and acquisition and display of automotive waveforms and other maintenance scenarios
15. Fuel injector test:
- Supports fuel injector signal simulation output, fuel injector signal
- Acquisition, fuel injector cleaning parameter analysis and drawing waveform signals
16. Supports activation of high-power components with a constant current of up to 100Amps, such as automotive bulbs, motors, instruments, etc.
17. If the current is overloaded, short-circuited or the temperature is too high, CP40 will respond in milliseconds to turn on the overcurrent protection to prevent losses caused by short circuits
18. 10M extension cable, effectively increases the test distance, and can test the taillight circuit status normally even in the face of large trucks
19. Type-C interface, used for software upgrades, the process is simple, and it is convenient for operating system upgrades to connect software
20. The anti-slip design on both sides is conducive to one-handed operation and is not easy to slip during use
21. High-definition colorful large-screen display, the effect is clearer and more stable, and the data is more intuitive
22. Physical silicone buttons, environmentally friendly materials, comfortable feel, high sensitivity, fast response speed
23. Copper-plated alligator clips, pure copper-plated material, large opening range, strong bite force, more accurate measurement
24. Size: 217x75x45mm

Verified Compatible

Guaranteed fit for your device. Wrong part? Full refund including shipping.
